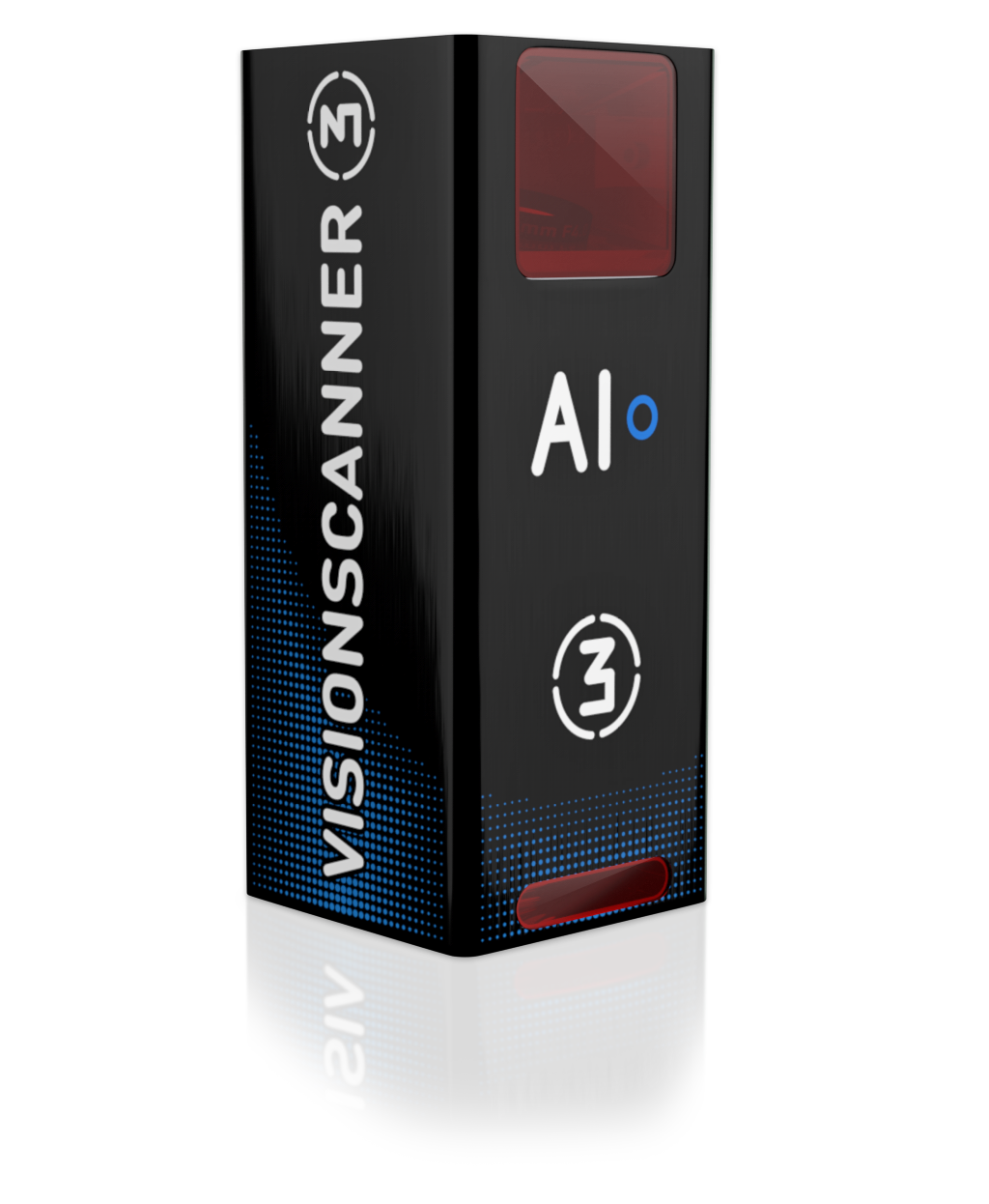

VISIONSCANNER3 is the triangulation sensor for smart production environments.

It can be used very economically and efficiently in a wide range of applications through its measuring ranges from 80 to 1200 mm, measuring frequences up to 1000 Hz and an integrated processor. In connection with the software VISIONELEMENTS3 from AI it is specifically adapted to operations with industrial robots.

Further information at our YouTube channel:

https://www.youtube.com/channel/UCH70rN3f2mz0xeB8-OQQZ1Q

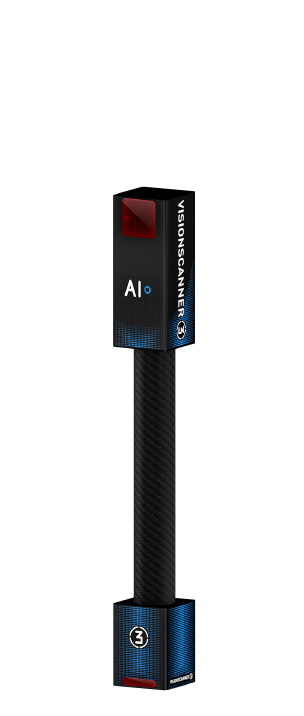

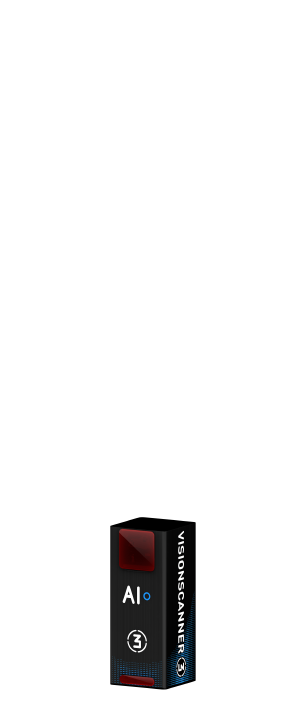

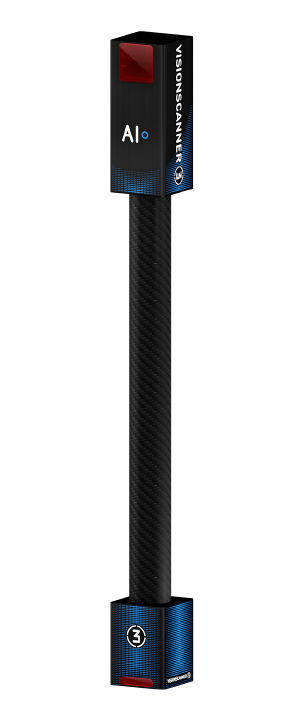

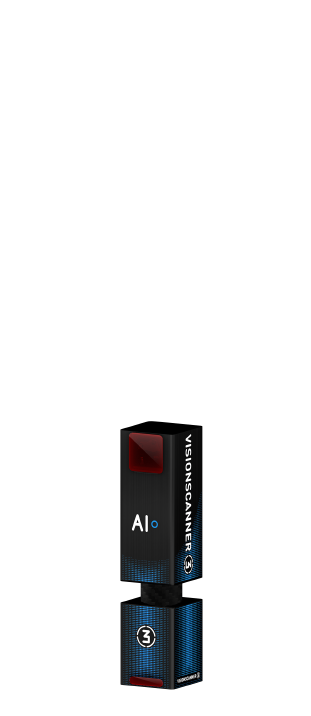

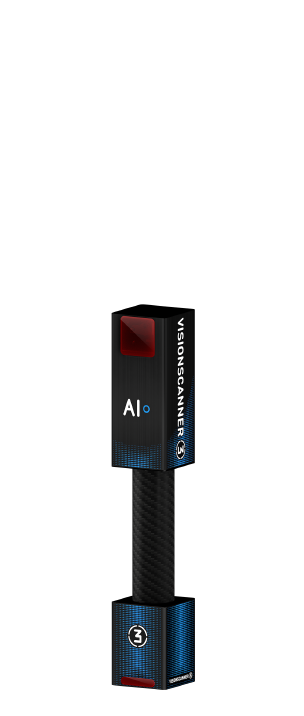

TYPE 80 200 400 800 1200
Length of housing mm 105 215 315 465 615

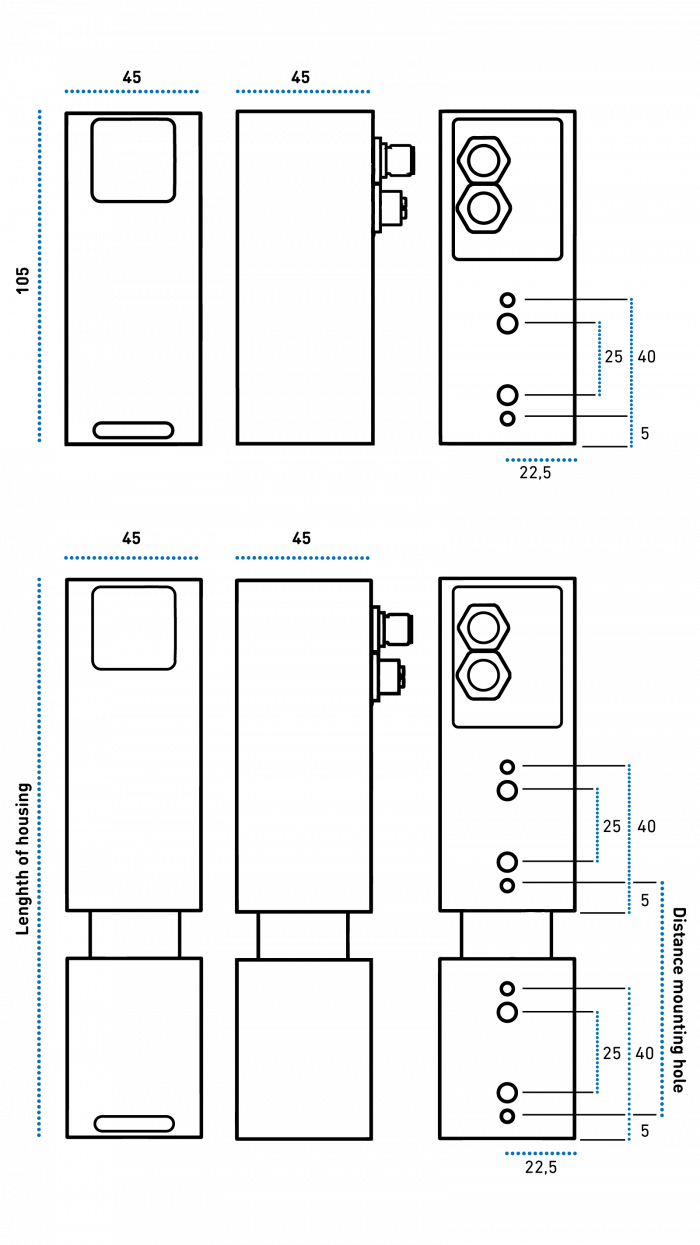

Distance mounting hole mm 110 210 360 510
Measuring frequence Hz 200 Hz at full usage of measuring range, up to 1000 Hz with 10% usage of measuring range
Laser class 2 3R 3R 3B 3B
Optical power mW 18 43 66 100 100
Distance MEASUREMENT RANGE mm 73 198 264 480 702
MEASUREMENT RANGE mm 78 201 405 815 1297
MEASUREMENT RANGE Resolution mm/px 0,07 0,19 0,38 0,75 1,20
FIELD OF VIEW Start mm 52 117 217 351 488
FIELD OF VIEW Center mm 64 149 304 535 789
FIELD OF VIEW End mm 75 182 390 719 1090
FIELD OF VIEW Resolution mm/px 0,04 0,10 0,21 0,37 0,55





Sensor technology CMOS Sensor
Profile rate 200 – 1.000 Hz
Measuring accuracy ± 0.2% of the measuring range, depending on geometry & surface
Life time laser diode 40.000 h
Ethernet Gigabit Ethernet 10/100/1000 Mbit, Half-/Fullduplex, Autonegotiation
Power supply 24V DC, max. 400 mA
Dimensions 45 x 45 x length of housing in mm
Weight ca. 400 g
Protection class IP 64
Housing Aluminium, anodized
Environmental conditions (storage) -20 to 60 °C, max. 90 % rel. humidity
Environmental conditions (in usage) 0 to 55 °C, max. 80 % rel. humidity
Approvals CE

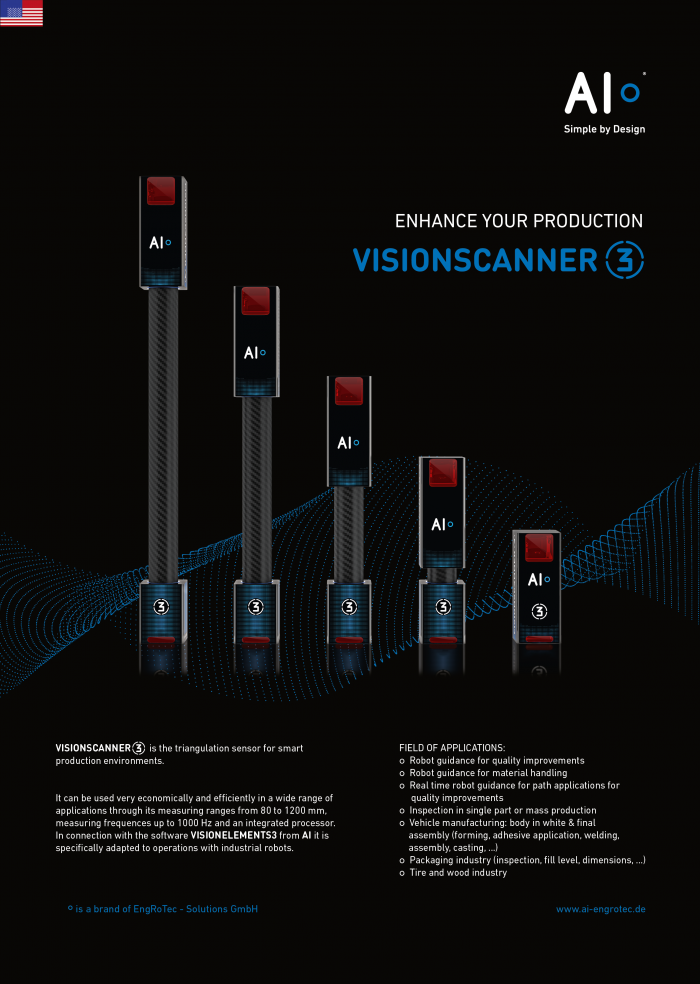

en_thumb_flyervs3

Further information on this product like manuals and CAD data are available on request.
